MAVİŞEHİR Water Olympic Center

     The long side of the Olympic pools is 50 meters and the short side is 25 meters. In addition, with 2500 seats to be provided, the total size of the area covered by the pool has increased to 66x73 meters.

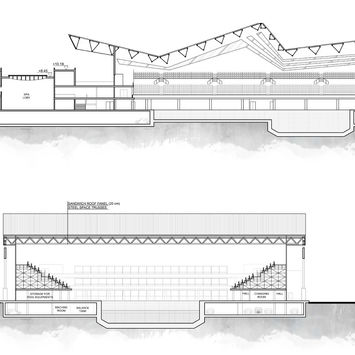

     The main challenge in the project is to pass these distances indoors without creating a column. In order to achieve this, first of all, the tree column structure is used. The columns in this tree structure are connected to each other by shed trusses. A row-column beam system with a span of 73 meters is provided in this way, and the two sides are connected to each other by 3-dimensional triangular trusses.
